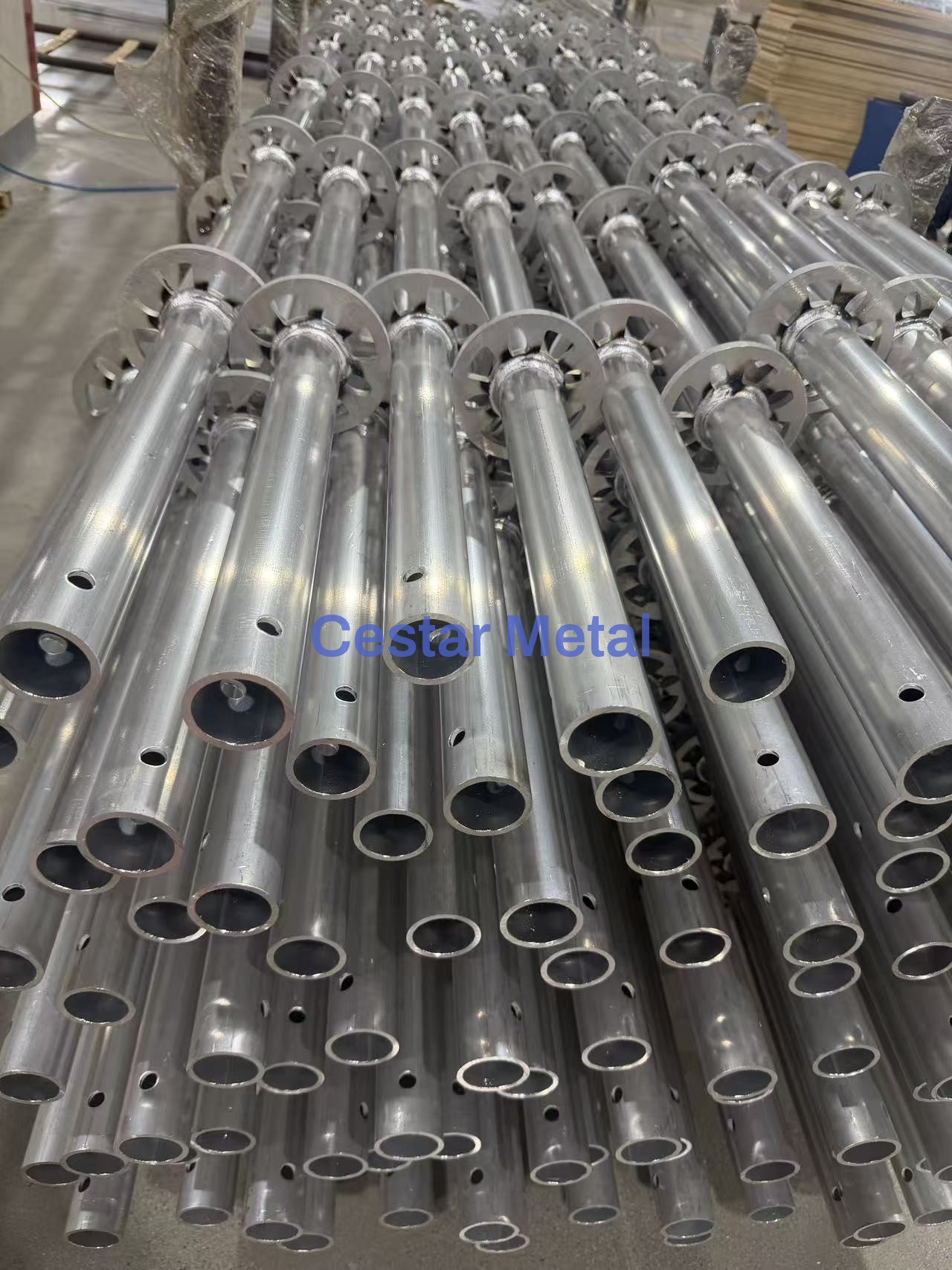

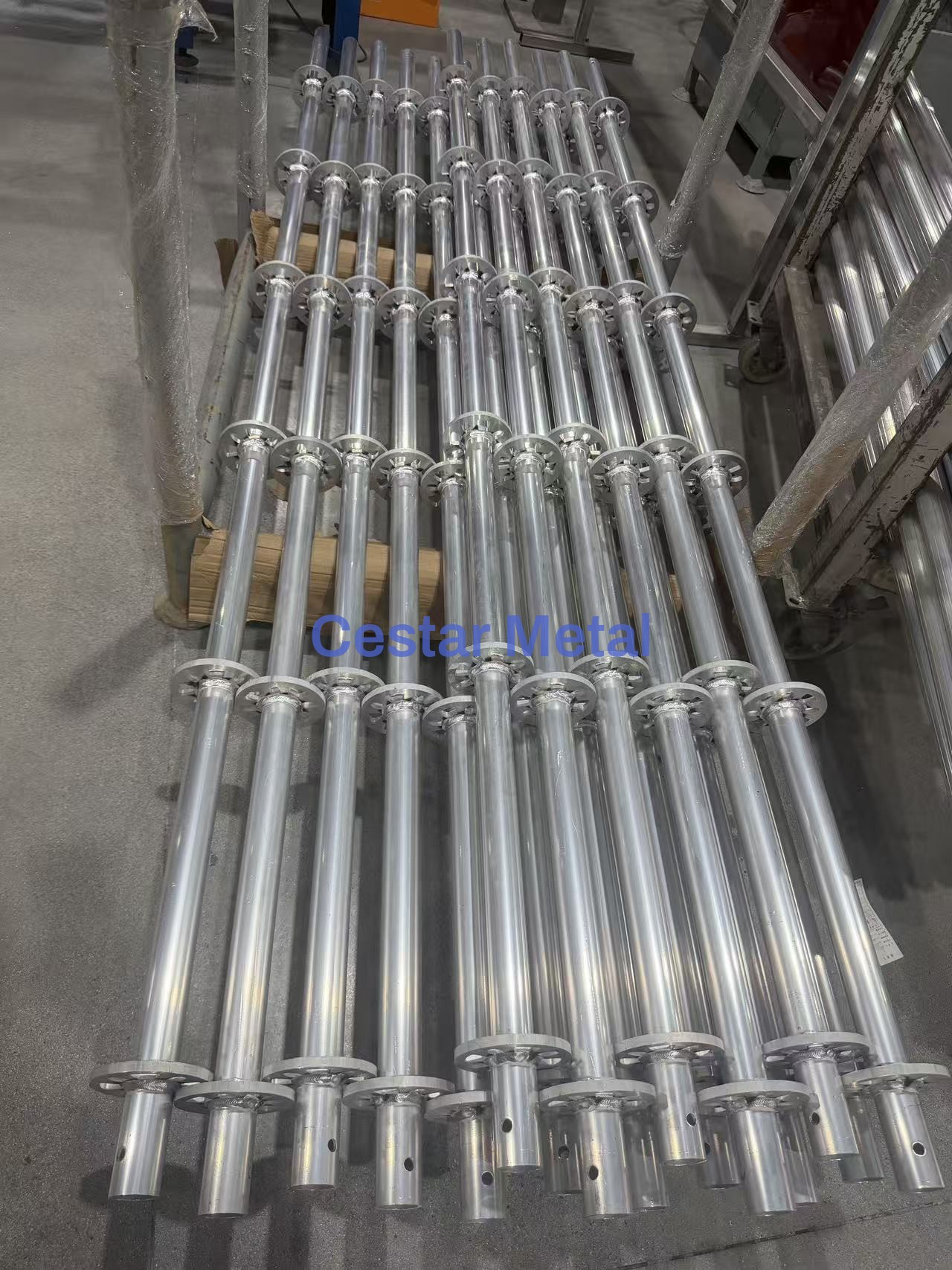

Ringlock Standard
Ringlock System · Factory direct from Cestar Scaffold, China
Ringlock System

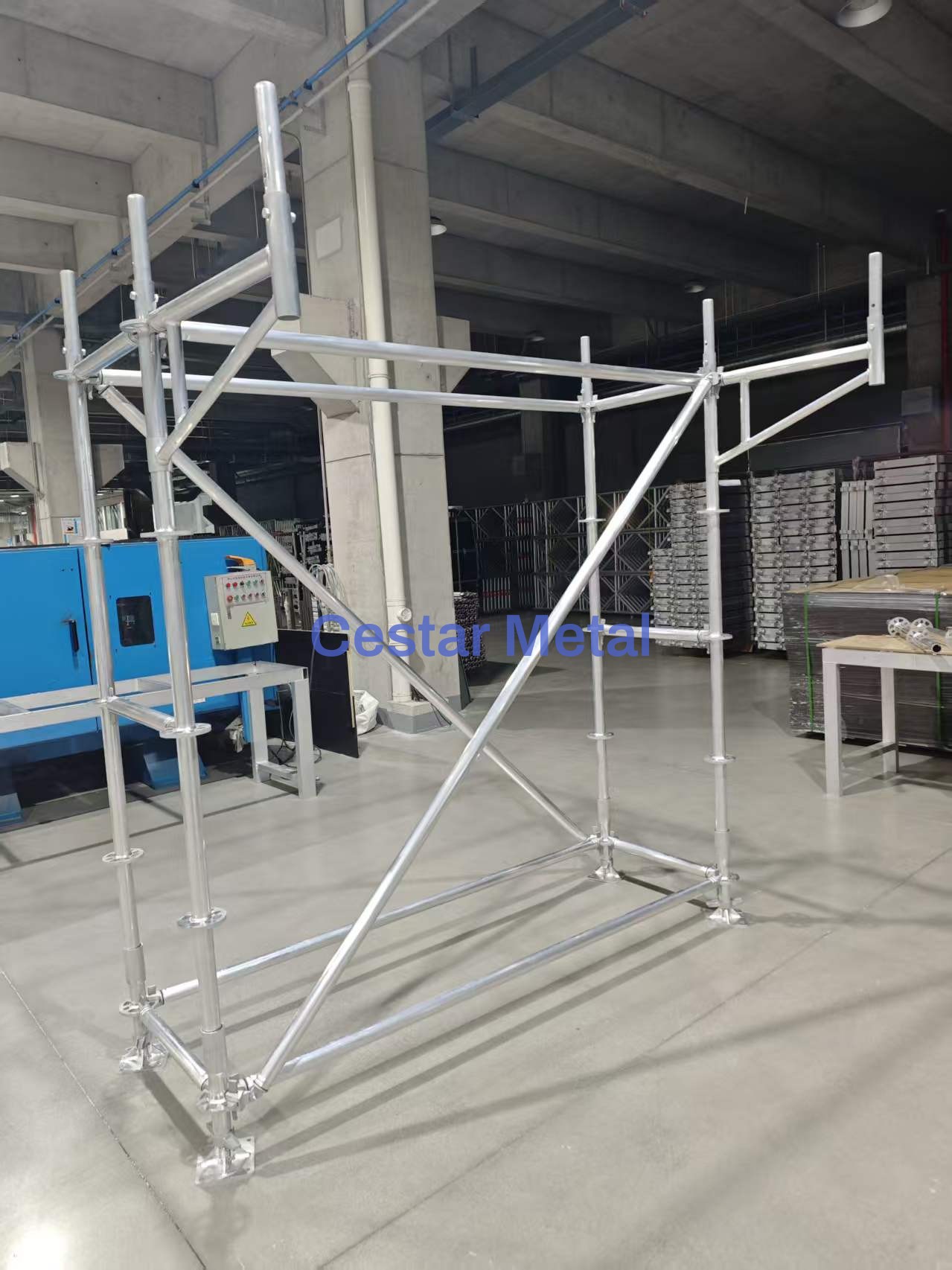

The Ringlock Standard serves as the primary vertical load-bearing column within the Ringlock scaffolding system, providing essential structural support and ensuring overall stability. Its integrated rosettes enable secure, multi-directional connections for ledgers, braces, and accessories, facilitating flexible and rigid modular assembly.
Related category: Ringlock System
Product description
Materials : Q355 high-strength steel.
Surface treatment: Hot Dip Galvanized
| Description | Weight(kg) | Tube Thickness(mm) | Tube Diameter(mm) |
|---|---|---|---|
| RingLock Standard 500mm | 2.76 | 3/3.25 | 48.3/60.3 |
| RingLock Standard 1000mm | 5.18 | 3/3.25 | 48.3/60.3 |
| RingLock Standard 1500mm | 7.61 | 3/3.25 | 48.3/60.3 |
| RingLock Standard 2000mm | 10.03 | 3/3.25 | 48.3/60.3 |
| RingLock Standard 2500mm | 12.45 | 3/3.25 | 48.3/60.3 |
| RingLock Standard 3000mm | 14.87 | 3/3.25 | 48.3/60.3 |
| RingLock Standard 4000mm | 19.72 | 3/3.25 | 48.3/60.3 |
