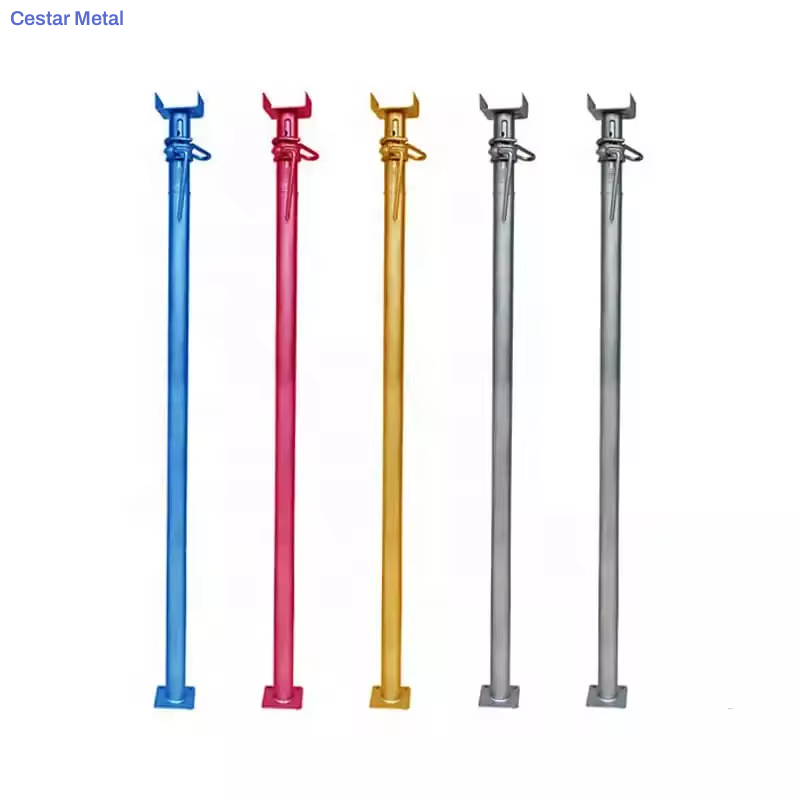

Scaffolding Steel Prop
Scaffold Tube System · Factory direct from Cestar Scaffold, China
Scaffold Tube System
Type: Scaffolding Prop, Adjustable Steel Prop, American Steel Prop
Length:0.8-2.7m
Outer tube: 48-60.3mm
Inner tube:40-48.3mm
Wall thickness:1.5-4.0mm
Surface: Painted, Galvanized, Standard size
Cestar Scaffold manufactures Scaffolding Steel Prop as part of our scaffold tube system range. Components are produced in China for export projects, with hot-dip galvanized or coated finishes, OEM sizing and packing for container shipment, including USA door-to-door delivery when required.
Related category: Scaffold Tube System
Product description
Steel Props – Adjustable Vertical Supports for Concrete Formwork
Cestar Scaffold Co., Ltd. offers high-quality steel props designed to provide reliable, adjustable vertical support for concrete formwork in construction projects.

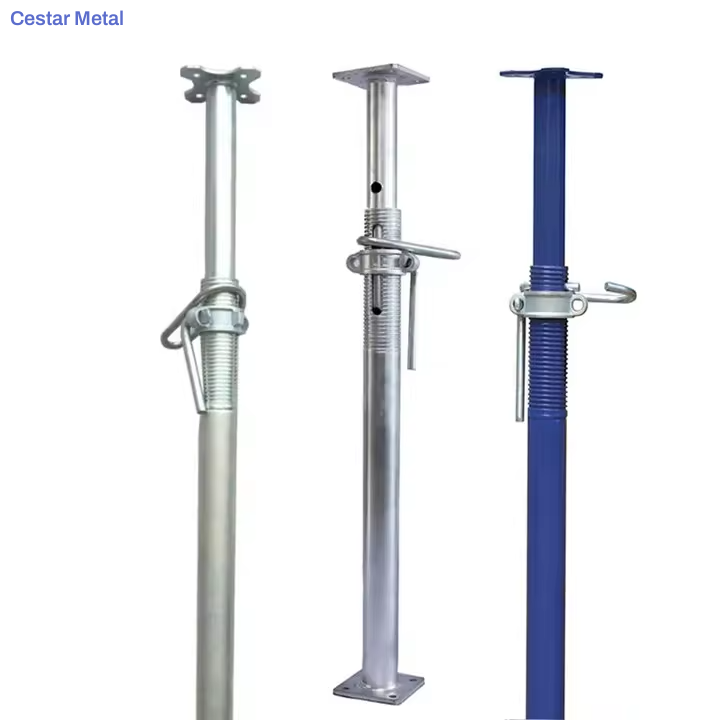

Precision Adjustment Mechanism
Our steel props feature a dual-adjustment system for precise positioning and leveling:
Coarse Adjustment: A high-tensile steel pin inserts through a slot in the outer tube and a hole in the inner tube, allowing for rapid height adjustments.
Fine Adjustment: A cast collar positioned below the pin enables precise leveling and striking, ensuring accurate alignment during concrete placement and ease of removal after curing.
Engineered for Strength and Safety
Rolled Thread Design: The threaded section is roll-formed rather than cut, preserving material integrity and maintaining full strength at this critical load-bearing point—eliminating the risk of weak spots.
Robust Construction: Manufactured from durable materials to withstand heavy loads and repeated use on job sites.
Reliable Performance You Can Trust
Every steel prop is engineered with safety as a priority, ensuring stable support throughout the construction process. The combination of coarse and fine adjustment mechanisms provides both efficiency during setup and precision during final positioning.
Choose Cestar Scaffold Co., Ltd. for dependable, adjustable steel props that deliver strength, safety, and long-lasting performance on every project.
1. PUSH-PULL PROP
| Adjustable Length | Outer Tube | Inner Tube | Wall Thickness | Surface Treatment |
|---|---|---|---|---|
| 1.4–2.7m | 60.3mm | 48.3mm | From 1.6 to 4.0mm | — |
| 1.6–2.7m | 60.3mm | 48.3mm | From 1.6 to 4.0mm | — |
| 1.62–2.64m | 60.3mm | 48.3mm | From 1.6 to 4.0mm | — |
| 2.0–3.9m | 60.3mm | 48.3mm | From 1.6 to 4.0mm | — |
| 2.2–4.1m | 60.3mm | 48.3mm | From 1.6 to 4.0mm | — |
| 2.5–4.5m | 60.3mm | 48.3mm | From 1.6 to 4.0mm | — |
| 3.0–5.0m | 60.3mm | 48.3mm | From 1.6 to 4.0mm | — |
2. SPANISH PROP
| Adjustable Length | Outer Tube | Inner Tube | Wall Thickness | Surface Treatment |
|---|---|---|---|---|
| 0.8–1.4m | 48mm | 40mm | From 1.5 to 2.5mm | Paint, Powder Coated, Electro galvanized or Hot Dipped Galvanized |
| 1.6–3.0m | 48mm | 40mm | From 1.5 to 2.5mm | Paint, Powder Coated, Electro galvanized or Hot Dipped Galvanized |
| 2.0–3.5m | 48mm | 40mm | From 1.5 to 2.5mm | Paint, Powder Coated, Electro galvanized or Hot Dipped Galvanized |
| 2.2–4.0m | 48mm | 40mm | From 1.5 to 2.5mm | Paint, Powder Coated, Electro galvanized or Hot Dipped Galvanized |
3. ITALIAN PROP
| Adjustable Length | Outer Tube | Inner Tube | Wall Thickness | Surface Treatment |
|---|---|---|---|---|
| 1.6–2.9m | 56mm | 48mm | From 1.5 to 2.75mm | Paint, Powder Coated, Electro galvanized or Hot Dipped Galvanized |
| 1.8–3.1m | 56mm | 48mm | From 1.5 to 2.75mm | Paint, Powder Coated, Electro galvanized or Hot Dipped Galvanized |
| 2.0–3.6m | 56mm | 48mm | From 1.5 to 2.75mm | Paint, Powder Coated, Electro galvanized or Hot Dipped Galvanized |
| 2.0–4.0m | 56mm | 48mm | From 1.5 to 2.75mm | Paint, Powder Coated, Electro galvanized or Hot Dipped Galvanized |
4. MIDDLE EAST OR GERMAN PROP (HEAVY DUTY PROP)
| Adjustable Length | Outer Tube | Inner Tube | Wall Thickness | Surface Treatment |
|---|---|---|---|---|
| 1.4–2.7m | 60.3mm | 48.3mm | — | Paint, Powder Coated, Electro galvanized or Hot Dipped Galvanized |
| 1.6–2.7m | 60.3mm | 48.3mm | — | Paint, Powder Coated, Electro galvanized or Hot Dipped Galvanized |
| 1.62–2.64m | 60.3mm | 48.3mm | — | Paint, Powder Coated, Electro galvanized or Hot Dipped Galvanized |
| 2.0–3.9m | 60.3mm | 48.3mm | — | Paint, Powder Coated, Electro galvanized or Hot Dipped Galvanized |
| 2.1–4.1m | 60.3mm | 48.3mm | — | Paint, Powder Coated, Electro galvanized or Hot Dipped Galvanized |
| 2.5–4.5m | 60.3mm | 48.3mm | — | Paint, Powder Coated, Electro galvanized or Hot Dipped Galvanized |
| 3.0–5.0m | 60.3mm | 48.3mm | — | Paint, Powder Coated, Electro galvanized or Hot Dipped Galvanized |
