Schedule 40 Sidewalk Shed Bridge Leg Bridge Post
American Sidewalk Shed · Factory direct from Cestar Scaffold, China
American Sidewalk Shed
Schedule 40 Sidewalk Shed Bridge Leg Bridge Post
Cestar Scaffold manufactures Schedule 40 Sidewalk Shed Bridge Leg Bridge Post as part of our american sidewalk shed range. Components are produced in China for export projects, with hot-dip galvanized or coated finishes, OEM sizing and packing for container shipment, including USA door-to-door delivery when required.
Related category: American Sidewalk Shed
Product description

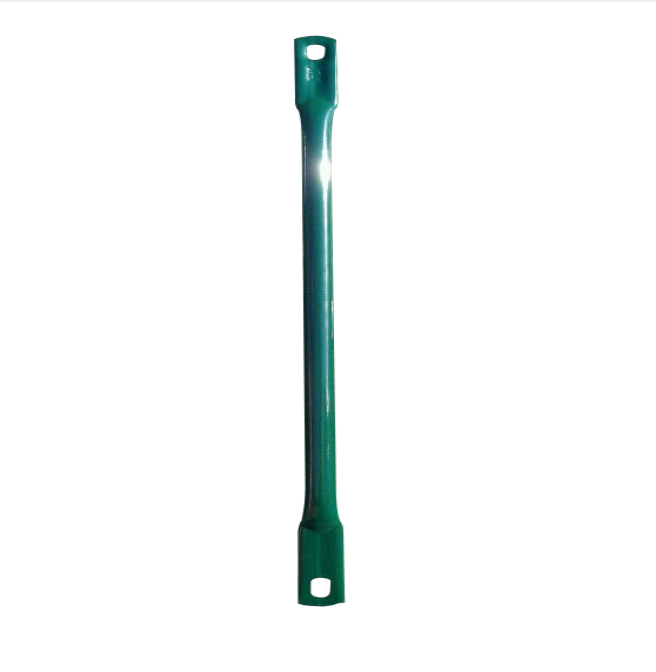

1. Bridge Leg
| Size | Weight | Finish |
|---|---|---|
| 8' Bridge Legs | 65 lbs | HDG / Powder Coated |
| 10' Bridge Legs | 72 lbs | HDG / Powder Coated |
| 12' Bridge Legs | 84 lbs | HDG / Powder Coated |
| 14' Bridge Legs | 95 lbs | HDG / Powder Coated |
| 16' Bridge Legs | 106 lbs | HDG / Powder Coated |
| 20' Bridge Legs | 128 lbs | HDG / Powder Coated |
2. Horizontal Girth & Brace
| Specification | Weight | Finish |
|---|---|---|
| 1' Gurtz | 1.7 lbs | HDG / Powder Coated |
| 3' Gurtz | 4.4 lbs | HDG / Powder Coated |
| 8' Gurtz | 12 lbs | HDG / Powder Coated |
| 10'4'' Brace | 10 lbs | HDG / Powder Coated |
3. Corrugated Sheet
| Size | Weight | Finish |
|---|---|---|
| 8'x33'' | 21.1 lbs | Galvanized |
| 10'x33'' | 26.3 lbs | Galvanized |
| 12'x33'' | 31.7 lbs | Galvanized |
4. Junior Beams & Header Beams
| Size | Weight | Finish |
|---|---|---|
| 10' Junior beam | 73 lbs | self-color |
| 13' Junior beam | 97 lbs | self-color |
| 15' Junior beam | 108 lbs | self-color |
| 10' Header beam W8X10 | 100.00 lbs | self-color |
| 10' Header beam W10X13 | 130.00 lbs | self-color |
